TF740

SONAR / GPS / COMPASS

MSRP:€1199

Part Number.:#101619
  • KEY FEATURES
  • SPECS

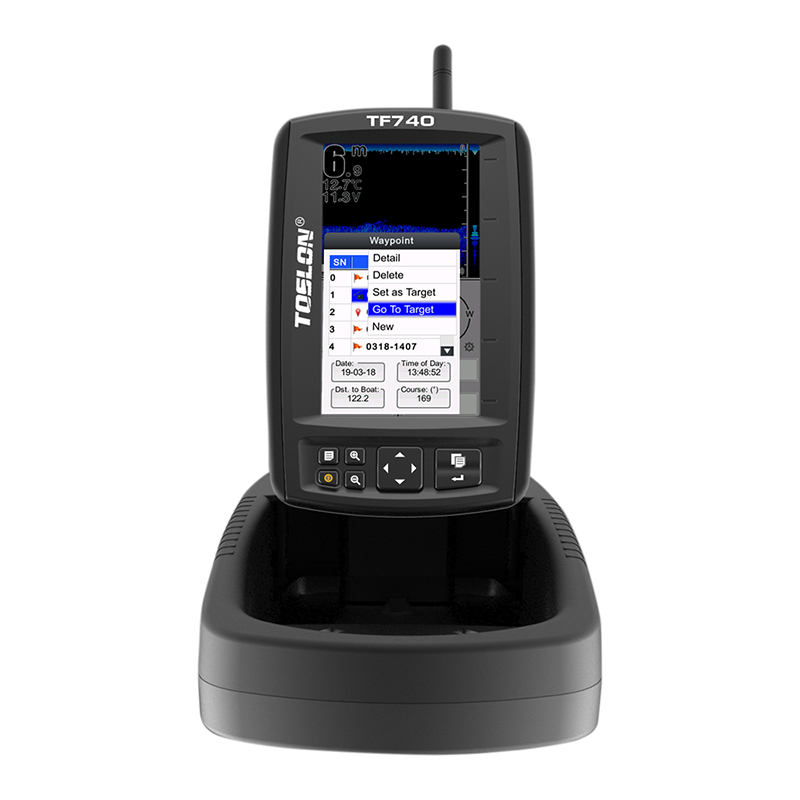

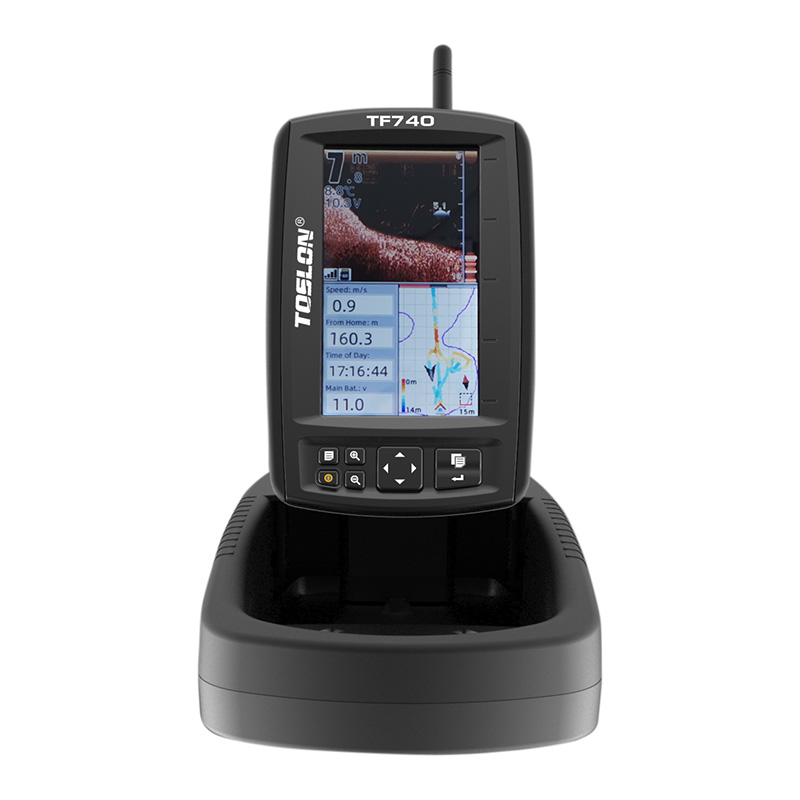

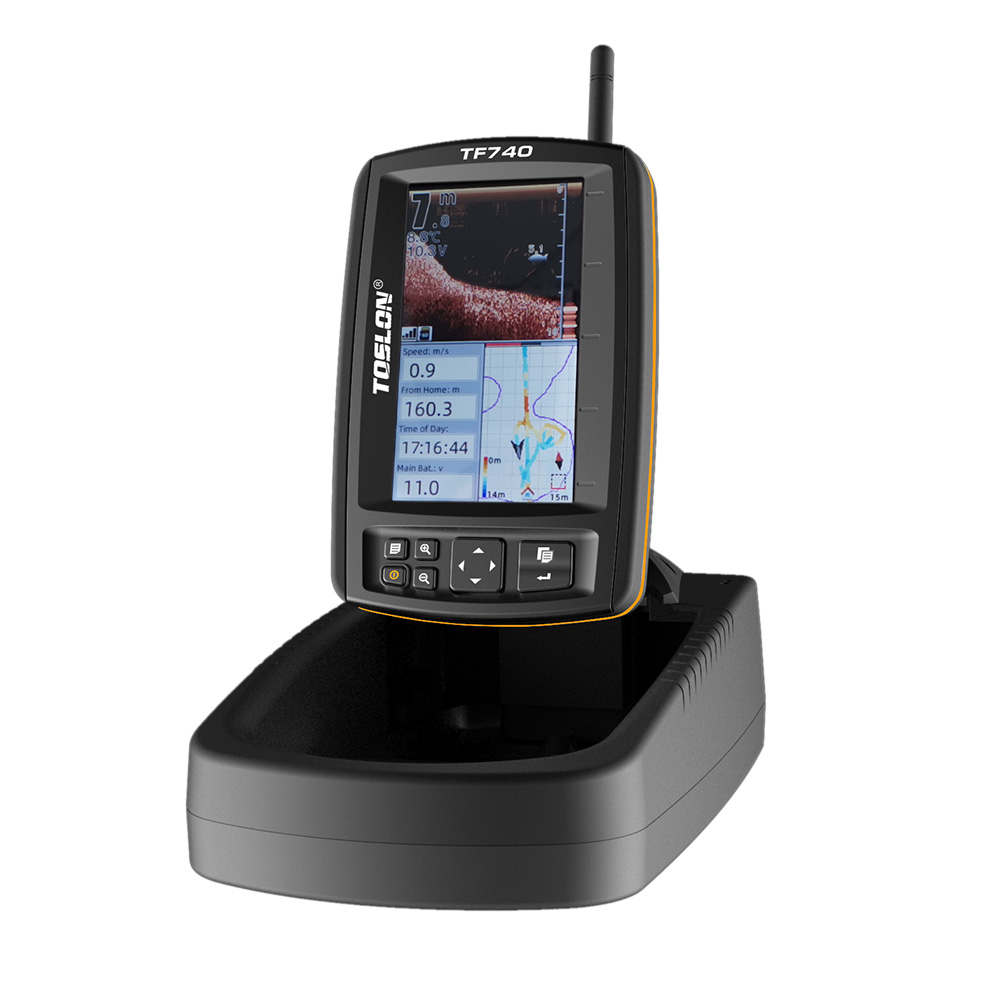

The TF740 is specially designed for bait boats. It integrates wireless fish finder, high precision compass, GPS and autopilot system. The advanced sonar features show you a detailed bottom structure and fish signals. The autopilot system accurately navigates the boat to a saved target. It's a true autonomous driving system, which can help anglers use their boats under harsh conditions, such as in the dark or in heavy fog. The TF740 supports *.kml files (which can be edited via Google Earth), then set it as the outline of the lake. It helps the angler to precisely select a point and then simply activates the autopilot mode via the [PUSH-GO] button. The TF740 is not only a fish finder, but also an unmanned operating system for bait boats that ensures you have a happy time of fishing.

KEY FEATURES

Echosounder

- 120ft max depth capability

- 60 degree sonar coverage

- 115KHz Sonar frequency

- Hardware gain adjustable

GPS + Compass

- 500 Waypoints

- 10 Routes to be saved

- Compass at boat and display side

Autopilot

- Pick up waypoint from map

- Push-Go key (shortcut)

- Propeller & Rudder boat support


SPECS

BASIC TFT Color Screen 5"
Power DC 9~15V
Battery 3S 18650 (Optional)
Built-in Li-ion Charger Yes
AC-DC power supply Optional
Water Proof Splashproof
Echo Sounder Max. Depth 40m
Sonar coverage 60 degree
Ping Rate 6Hz
Sonar Software Engine Gen3
Hardware Gain Adjustable Yes

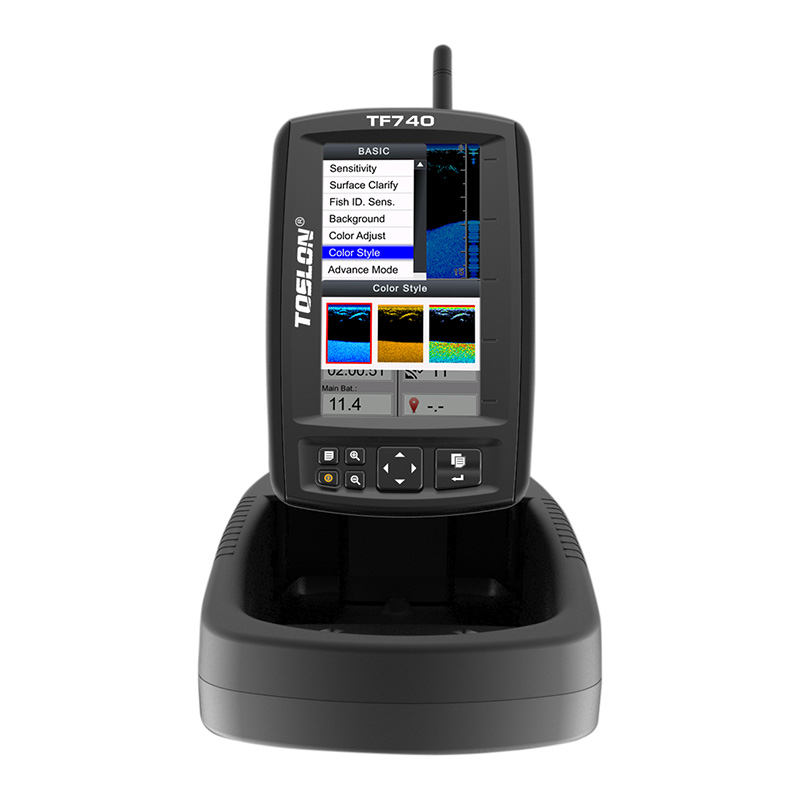

User Defined Color Scheme Support Yes
Color Route to Indicate Depth(2D Map) Yes
tsl2 logger for SonarViewer N/A
Radio System Radio Frequency 2.4GHz
Radio Power(Max) 20dBm
Frequency-hopping spread spectrum (FHSS) Yes
Direct-sequence spread spectrum (DSSS) Yes
Max Range 300m
GPS & Compass GPS Accuracy(CEP) 2.5m
Compass at Boat Side Yes
Compass at Dispaly Side Yes
Waypoint Number 500
Routes to be Saved 10
Autopilot Two propellers boat support Yes
propeller & Rudder boat support Yes
Steering Sensitivity Adjustable Yes
Wiring Test Mode Yes
Push-Go Key(shortcut) Yes

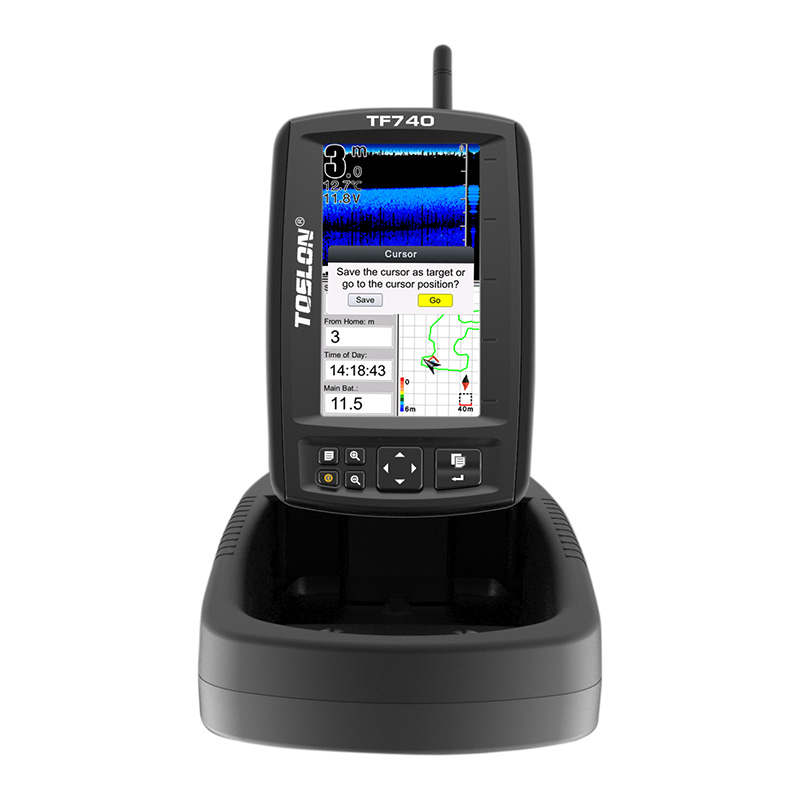

Pick up waypoint form map Yes
Google kml import to Define Lake Boundary Yes
