As an autopilot system, TOSLON X-Pilot (TC106) can work with most bait boats. It support: 2 Engines / 1 Engine with Rudder / XBoat and using one button to start the auto-pilot mode. [Wiring Test] Menu help you check & correct connection quickly.
KEY FEATURES
1.Boats support: 2 Engines / 1 Engine with Rudder / XBoat

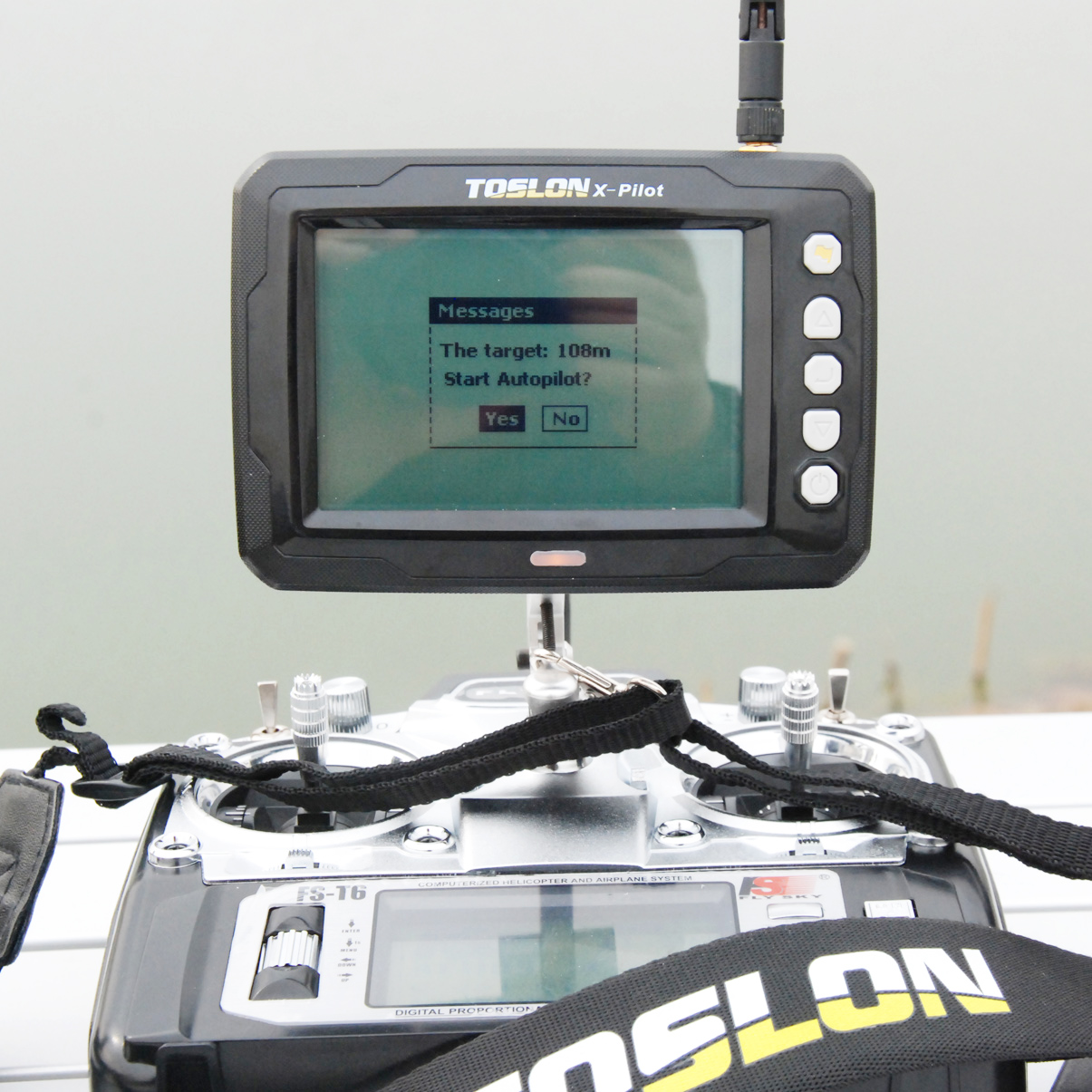

2.Easy Operation: one button to start the auto-pilot mode
3.Easy Connection: [Wiring Test] Menu help you check & correct connection quickly
4. Radio Power: 100mW (max operating range: 800ft)
5. Storage: Micro-SD support, Max 500 fishing spots, and upgrade software by SD simplely
6.Quickly saving / loading waypoints (and HOME point)
7.Automatically steer straight ahead

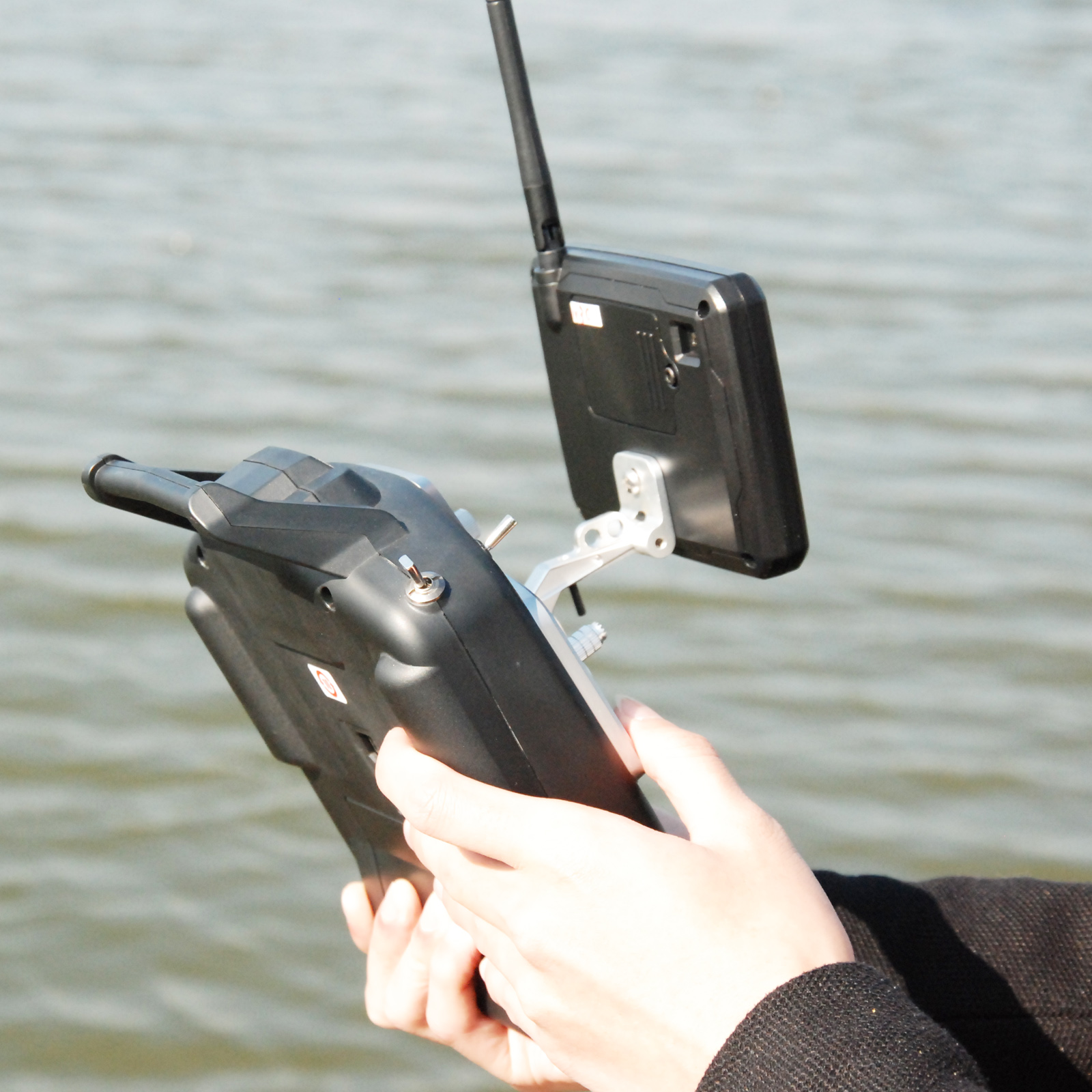

8.Quickly fixed to remote with special metal bracket (optional)
SPECS

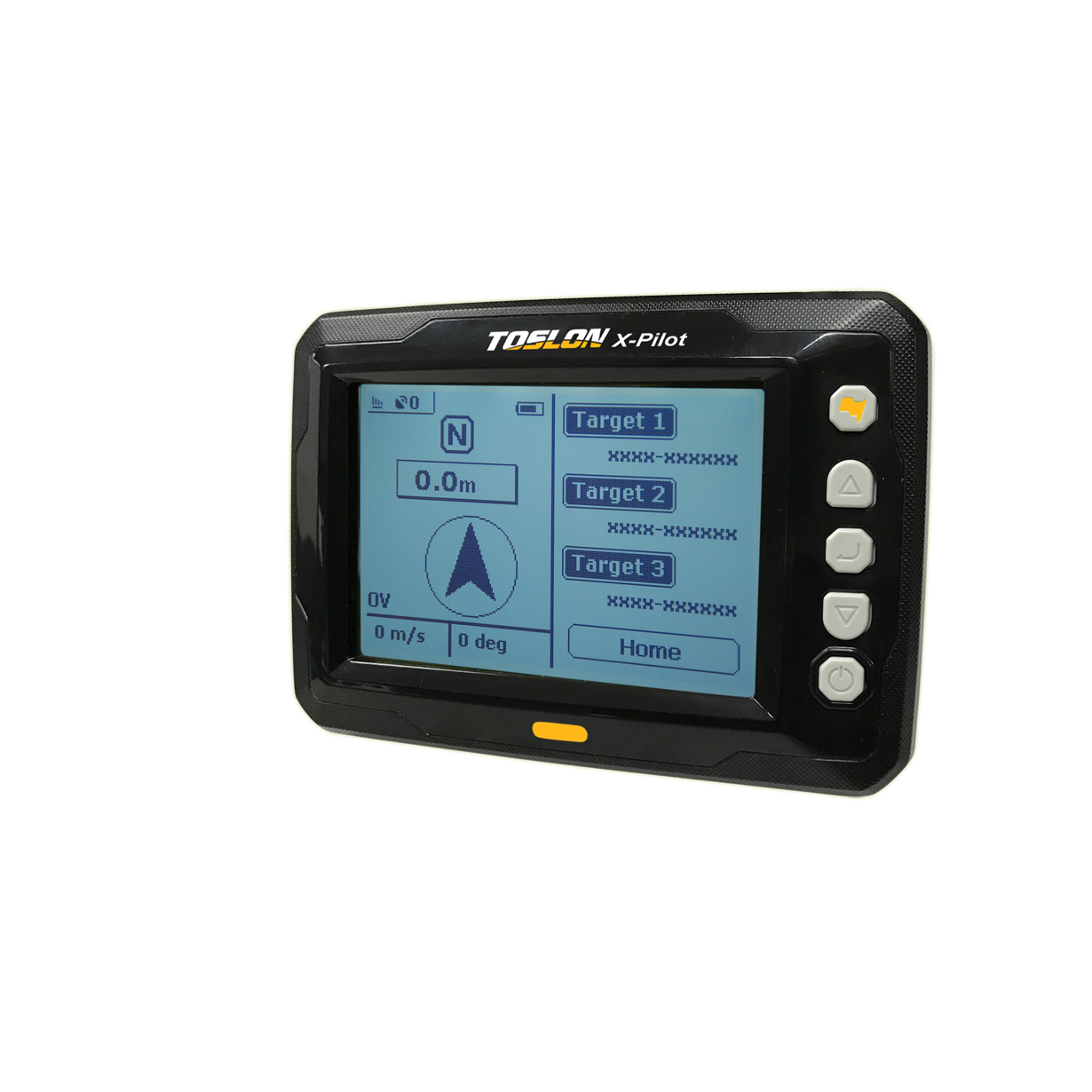

| Display | Display size: | 4.3" FSTN, Black & white |
| Display resolution: | 240x160 Pixels,Visible under sunlight | |
| Language: | English (future update: German / French / Russian) | |
| Failing-safe: | YES (the X-Pilot would alarm when lost the remot signal) | |
| SD card storage: | YES | |
| GPS & R/F | Radio frequency: | 433Mhz / 2GFSK |
| Radio Power: |
20dBm (Max 800ft RC distance , depending on
weather and environmental conditions) |
|
| Waypoints Number: | 500 | |
| Quick Reach Targets: | 4 ( include the Home position) | |
| GPS Receiver Type: | 50 Channels | |
| Compass Update Rage: | 10Hz | |
| Power | Power for X-Pilot CCU: | DC 6~16V |
| Power for the display: | Li battery (BL-5C) |
