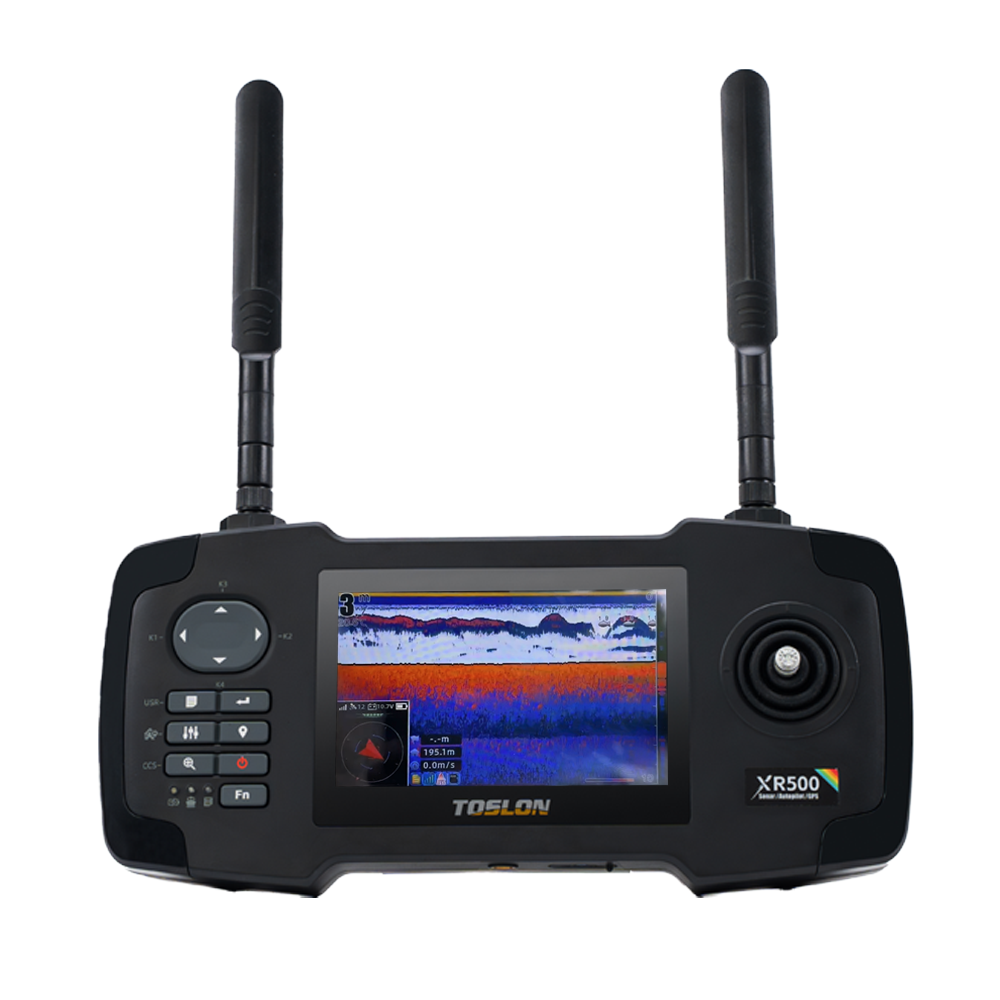

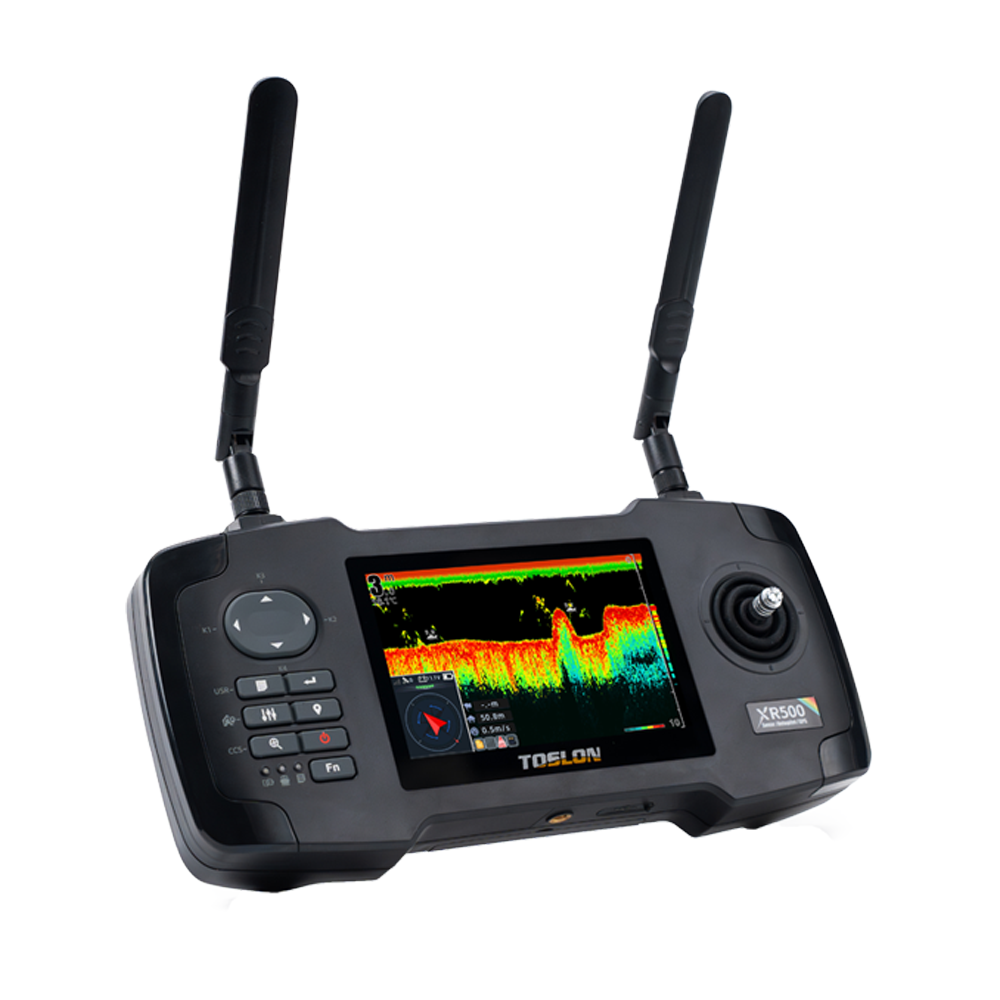

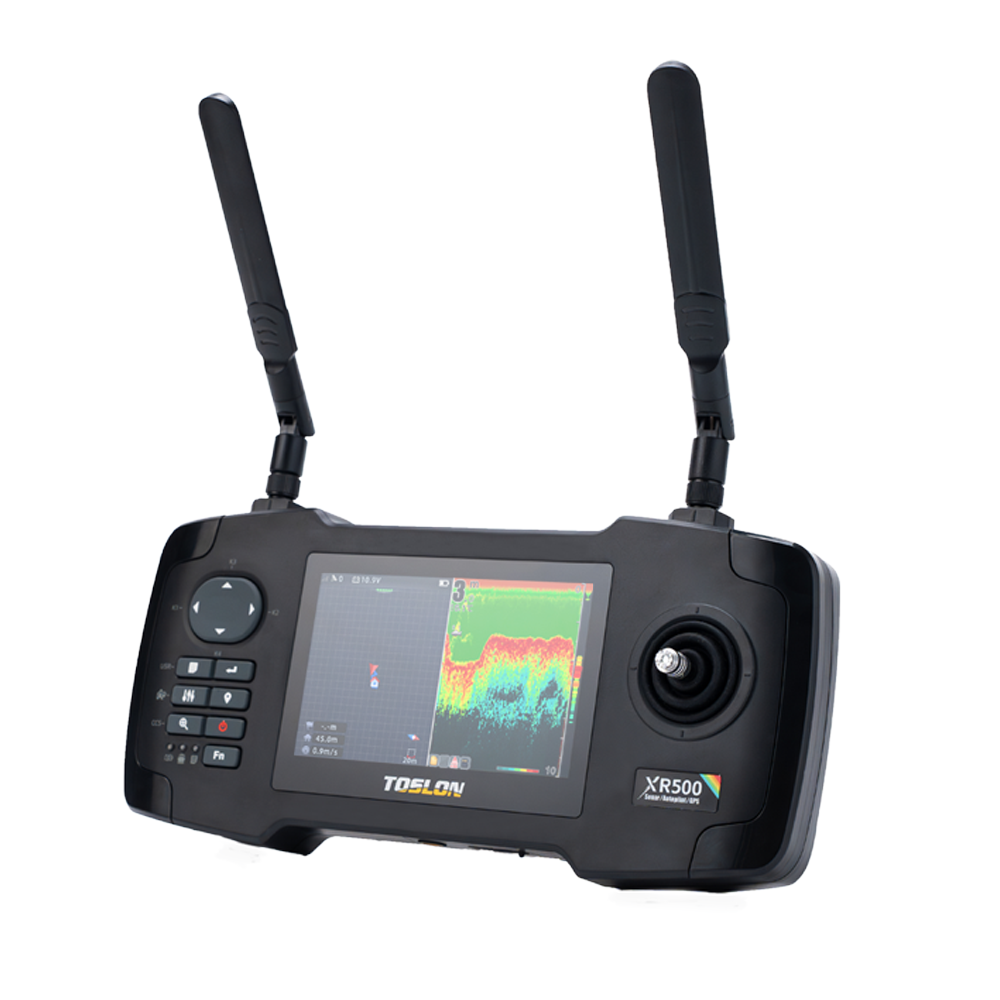

XR500 is an ALL-IN-ONE system for R/C boat, which combined remote with advanced sonar, GPS and autopilot function.
KEY FEATURES
SONAR
- Advanced echo sounder with HD image, 8 Color Palette for daytime & dark night fishing.
- Route plotter with depth information, the route can be reload as 2D map.
Autopilot
- Autopilot system with the 10th generation high accuracy GNSS receiver.
- Compasses at boat & handheld side, the boat heading is also given when in stationary state.
- 5 favorite spots can be defined out of 100 saved waypoints.
- Click the Joystick to select a point on map, and start autopilot.
Boat Controlling
- Support up to 8 channels of remote control.
- Quiet arrival feature to eliminate the noise when boat approaching the spot.
- CCS mode to free your hand, one button to active cruise control system, boat always run in straight line.
- Arrived actions: can config to release bait-box, hook, light after boat arrive target.
- Fail-Safe: automatically return to HOME point after signal lost lasting 20s.
Others
· SD card storage support import/export settings, waypoints, and software upgrade.
· *.tslw log file support, can record all sonar & GPS info to SD card.
· Google kml file support.
SPECS
| Handheld Device | TFT Color Screen | 5 inch,HD 800*480pixels |
| Power | type-C input,DC5V 3A | |
| Battery | 3pcs 18650(Optional) | |
| Built-Li-ion Charger | Yes | |
| Battery life | 8 hours | |
| AC-DC power supply | Optional | |
| Water Proof | Splashproof | |
| Radio frequency | 2.4GHz FHSS | |
| Radio Power | 20dBm(300m RC distance,Depends on usage environment) | |
| Case size | 268*120*42mm | |
| BCS-BOX | Signal Interface | PWM,PPM,Uart(optional) |
| Channels of Receiver | 8 | |
| GNSS/Compass Port | RS232,19200bps | |
| Fail-safe | YES(automatically return to HOME point after signal lost lasting 20s) | |
| Power Input | DC 3.5/1.35mm DC6~16V/200mA | |
| Echo Sounder | Max.Depth | 40m |
| Sonar coverage | 60 degree | |
| Ping Rate | 6Hz | |
| Sonar Software Engine | Gen3 | |
| Hardware Gain Adjustable | Yes | |
| User Defined Color Scheme Support | Yes | |
| Color Route to Indicate Depth(2D Map) | Yes | |
| tslw logger for SonarViewer | N/A | |
| Power Input | DC 5.5/2.1mm DC9~16V/200mA | |
| Navigate Sensor | GPS Accuracy(CEP) | 1.5m(SBS or QZSS)/2.5 |
| Compass at Boat Side | Yes | |
| Compass at Dispaly Side | Yes | |
| Other Sensors | 3-axis Gyro,3-axis Accelerometer | |
| Autopilot | Two propellers boat support | Yes |
| propeller & Rudder boat support | Yes | |
| Steering Sensitivity Adjustable | Yes | |
| Push-Go Key(shortcut) | Yes | |
| Pick up waypoint form map | Yes | |
| High speed boat support | 1~5m/s | |
| Cruise Control System | Yes | |
| Quiet Reach Mode | Yes,lower speed when approach the target | |
| Favourite Points ShortCut | 5 favourite waypoint shortcut | |
| Arrive Actions | Yes,open bait-boxes,release hook as config | |
| Waypoint Number | 100 with depth & time info |
